Teltonika Networks Remote Management System is an all-in-one, user-friendly IoT platform providing an easy way to stay on top of your connected solution. It is a powerful software that allows for remote access and management of all connected Teltonika Networks and third party devices.
You need one credit per device per month.

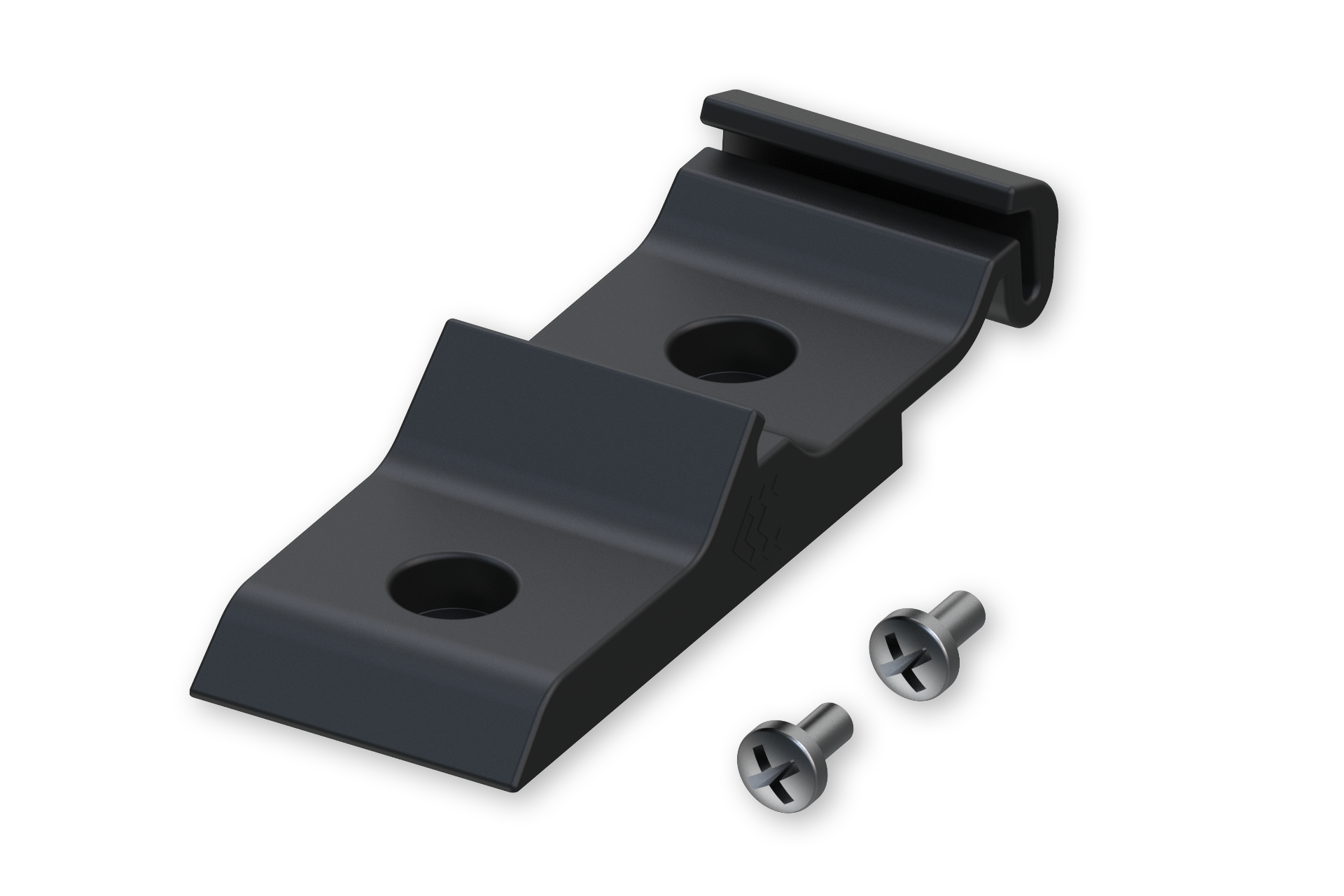

Datasheet TECHNICAL DATAMounting type 35 mm DIN RailMaterial ABS + PC plasticDimensions 70 x 25 x 14.5 mmScrews included Philips Pan head screw #6-32×3/16, 2 pcs

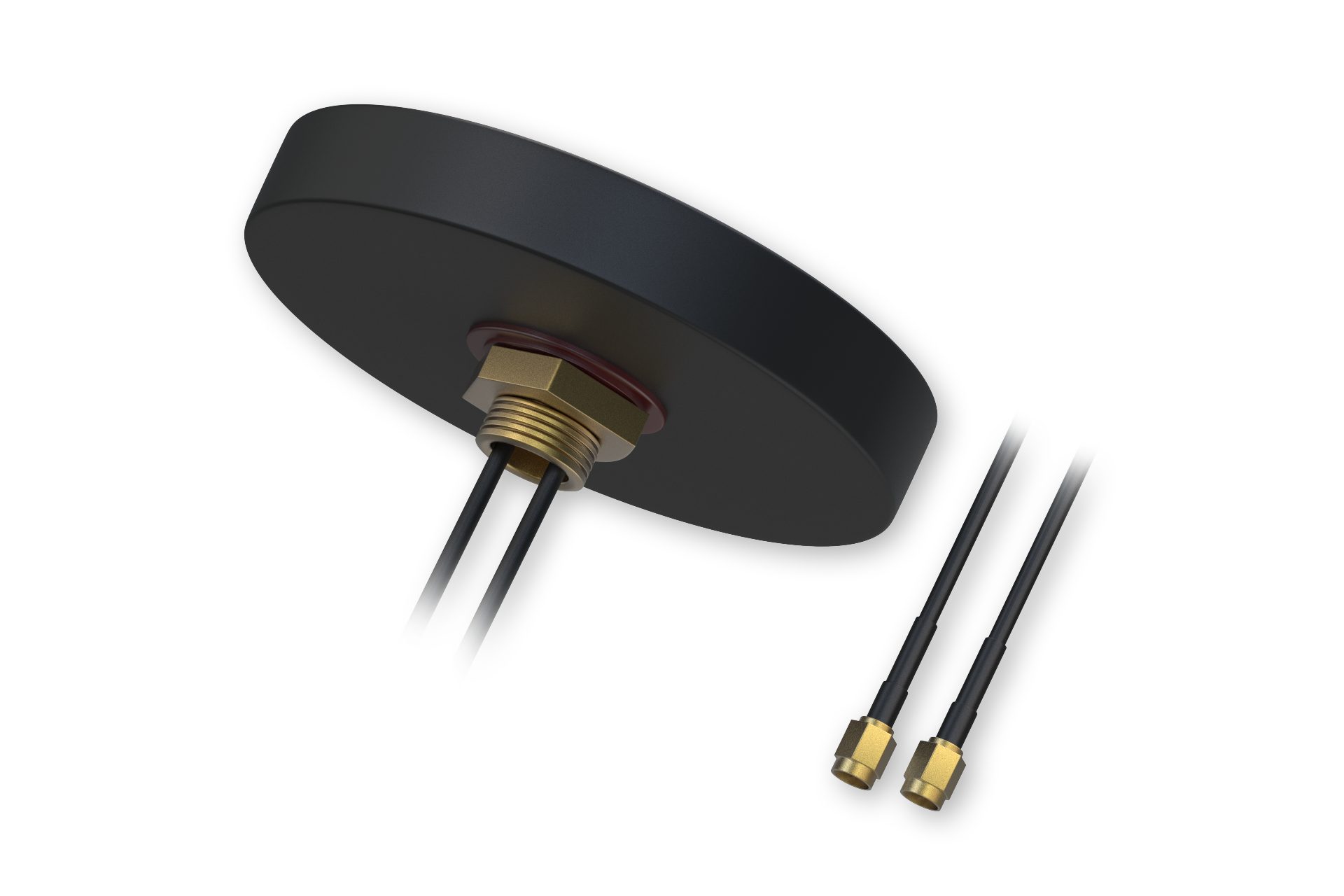

Datasheet Combo-MIMO Mobile Dachantenne SMA Frequency Range: 698-960/1710-2690 MHzPolarization LinearMain antenna gain 2.5 dBiAux antenna gain 2.0 dBiV.S.W.R <3.0Impedance 50 ΩConnector SMA Male

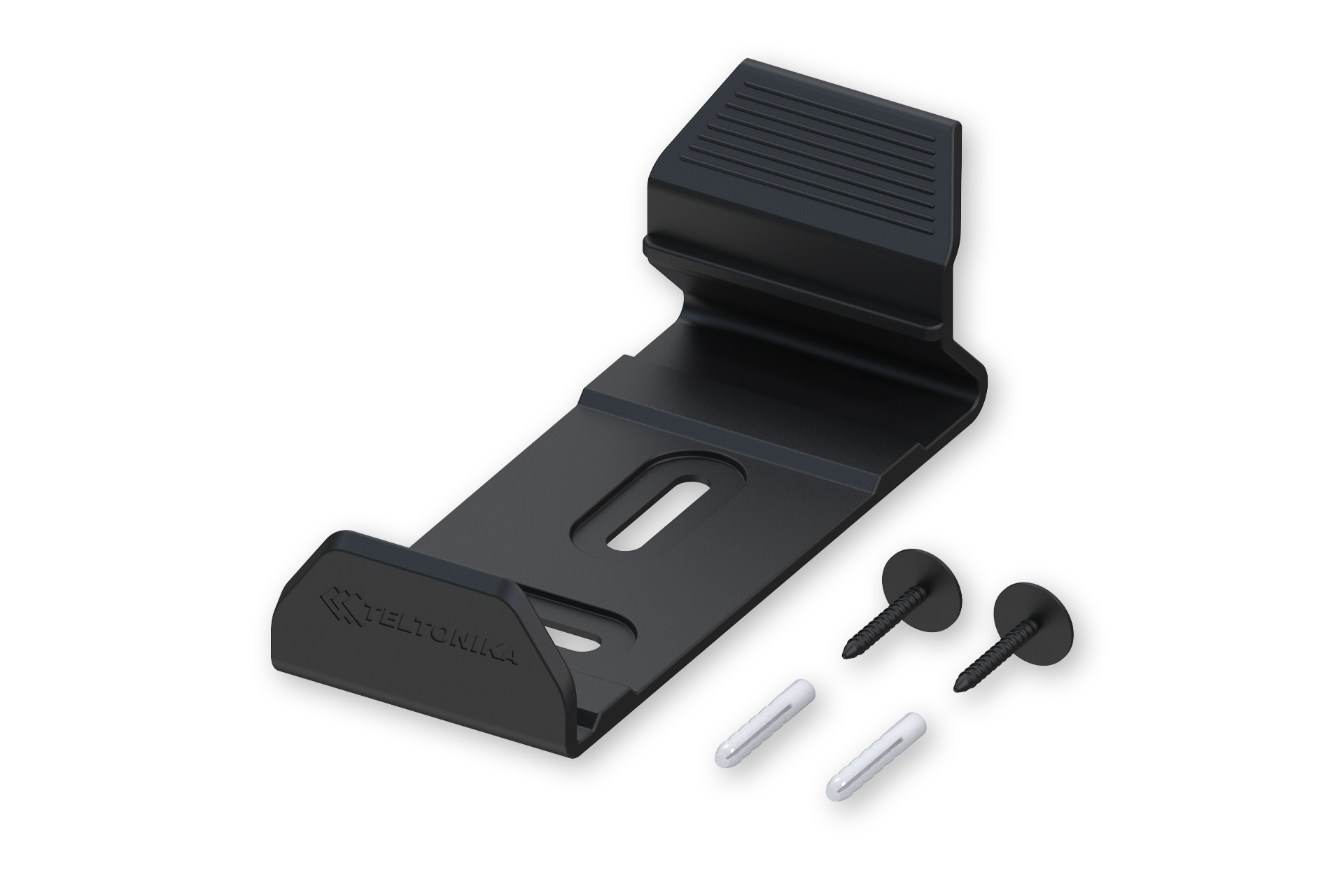

Datasheet STANDARD PACKAGE CONTAINSSurface Clip Holder KitSelf-tapping screws: DIN 14566 (4.2 mm x 32 mm), 2 pcs; Plastic expansion anchors: 6 mm x 30 mm, 2 pcs
Datasheet

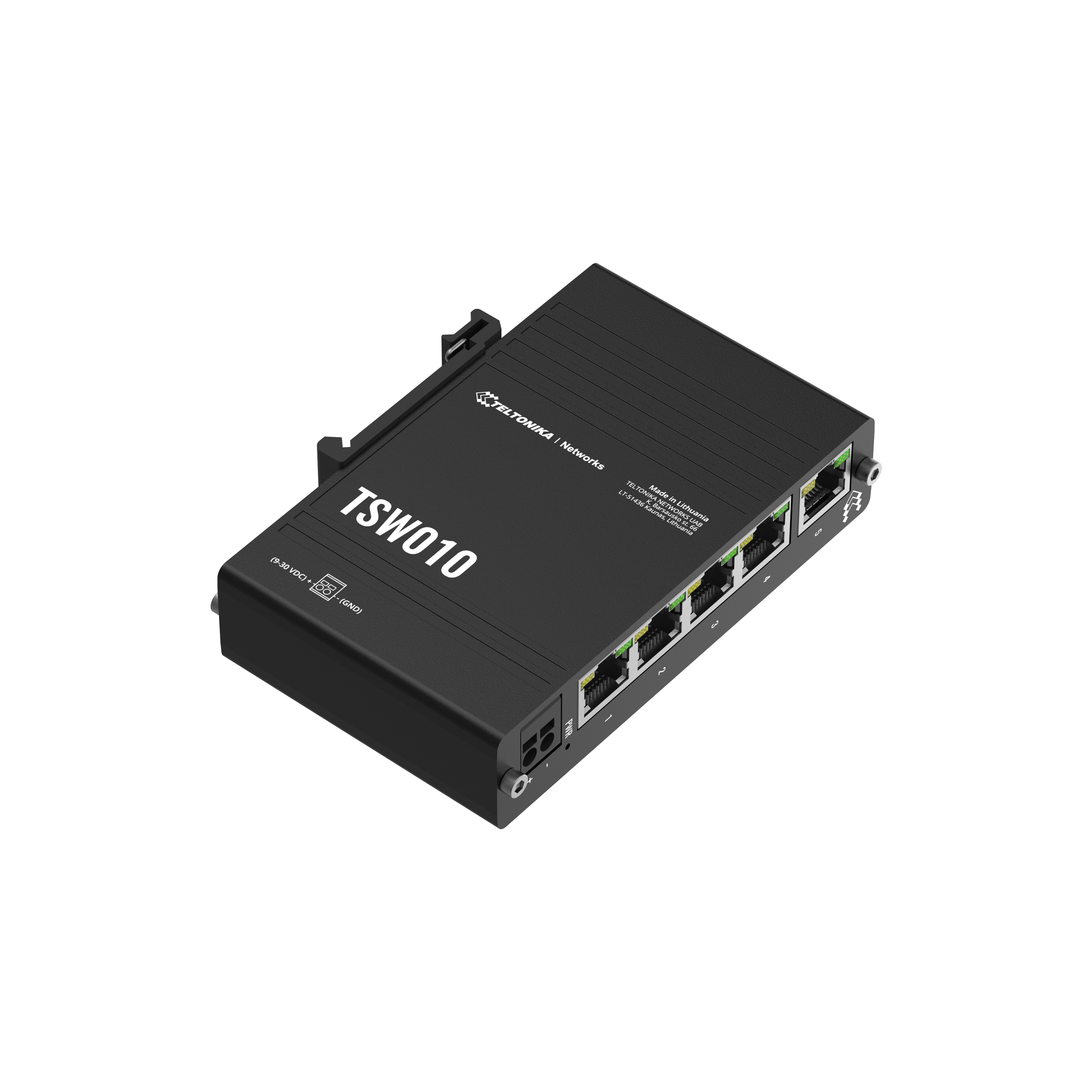

TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices.
Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications
where high throughput is not required.
ETHERNET LAN5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossoverIEEE 802.3 series standards 802.3i, 802.3u, 802.3x, 802.3azPERFORMANCE SPECIFICATIONS Bandwidth (Non-blocking)1 GbpsMAC address table size 2K entriesJumbo frame support2048 bytes POWER Connector2-pin industrial DC power socketInput voltage range9 – 30 VDCPoE (passive)Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDCPower consumption Idle: 0.3 W / Max: 0.9 WPHYSICAL INTERFACES Ethernet5 x RJ45 ports, 10/100 MbpsStatus LEDs1 x Power LED, 10 x ETH status LEDsPower1 x 2-pin industrial DC power socket PHYSICAL SPECIFICATION Casing materialAluminium housingDimensions (W x H x D)113.1 x 27.4 x 80.5 mmWeight146.5 gMounting options DIN rail or wall mounting (additional kit needed), flat surface placementPACKAGE CONTAINS TSW010QSG (Quick Start Guide)Packaging box

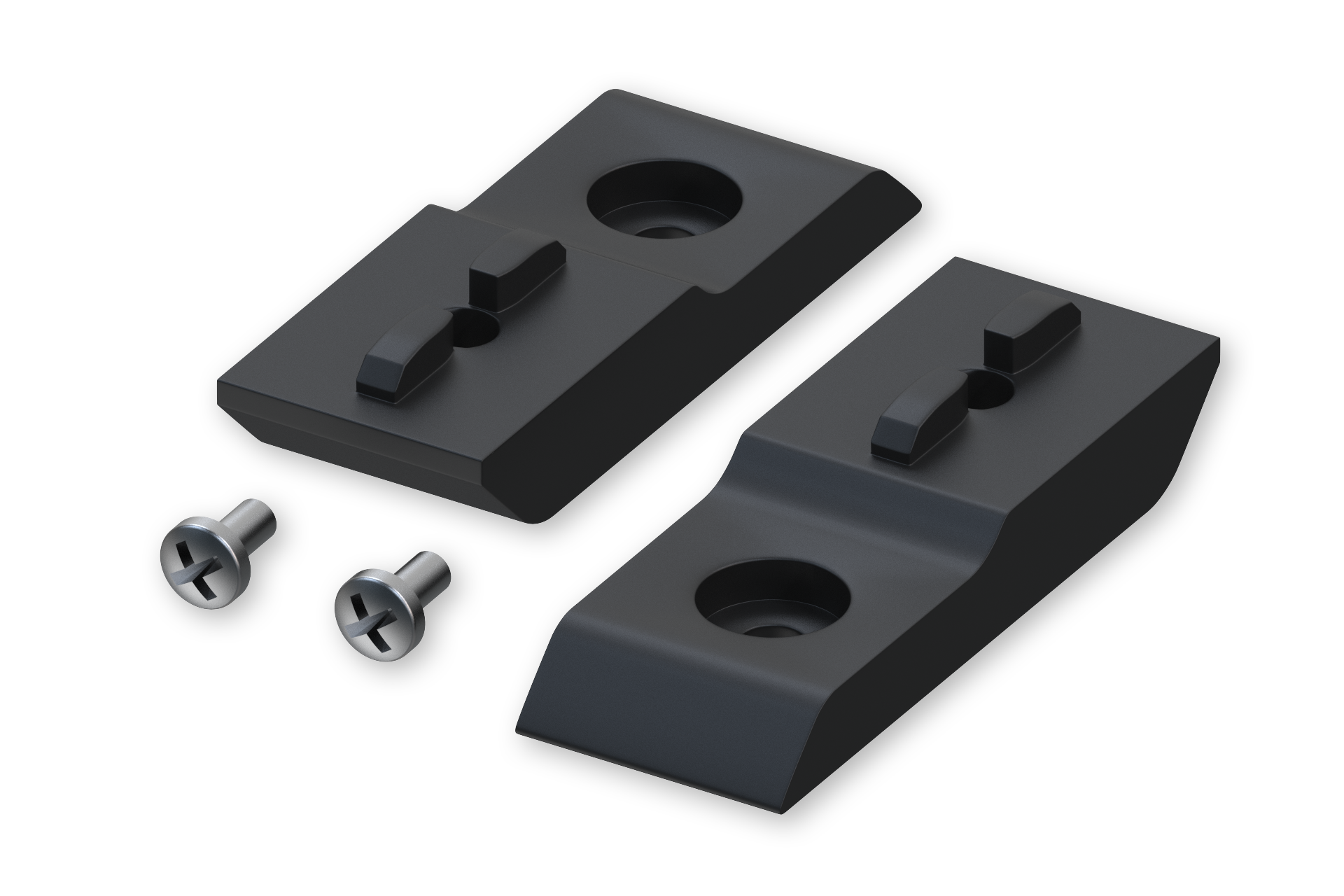

Datasheet With the surface mounting kit you can easily mount your TELTONIKA router on flat surfaces.STANDARD PACKAGE CONTAINSSurface mounting kitPhilips Pan Head screw #6-32×3/16, 2pcs
Ø6 Flexible Rogowski coil fixed by cable ties
• Calibrated to 0.5%• 6mm section make more stable• Easy to fixed on bus-bar or cable by cable ties
MAIN FEATURES :- High linearity up to 1000 A;- Wide dynamic range;- Very useful with large size or awkward shaped conductors or in placeswith limited access;- No danger from open-circuited secondary;- Not damaged by large overloads;- Non-intrusive, no power drawn from the main

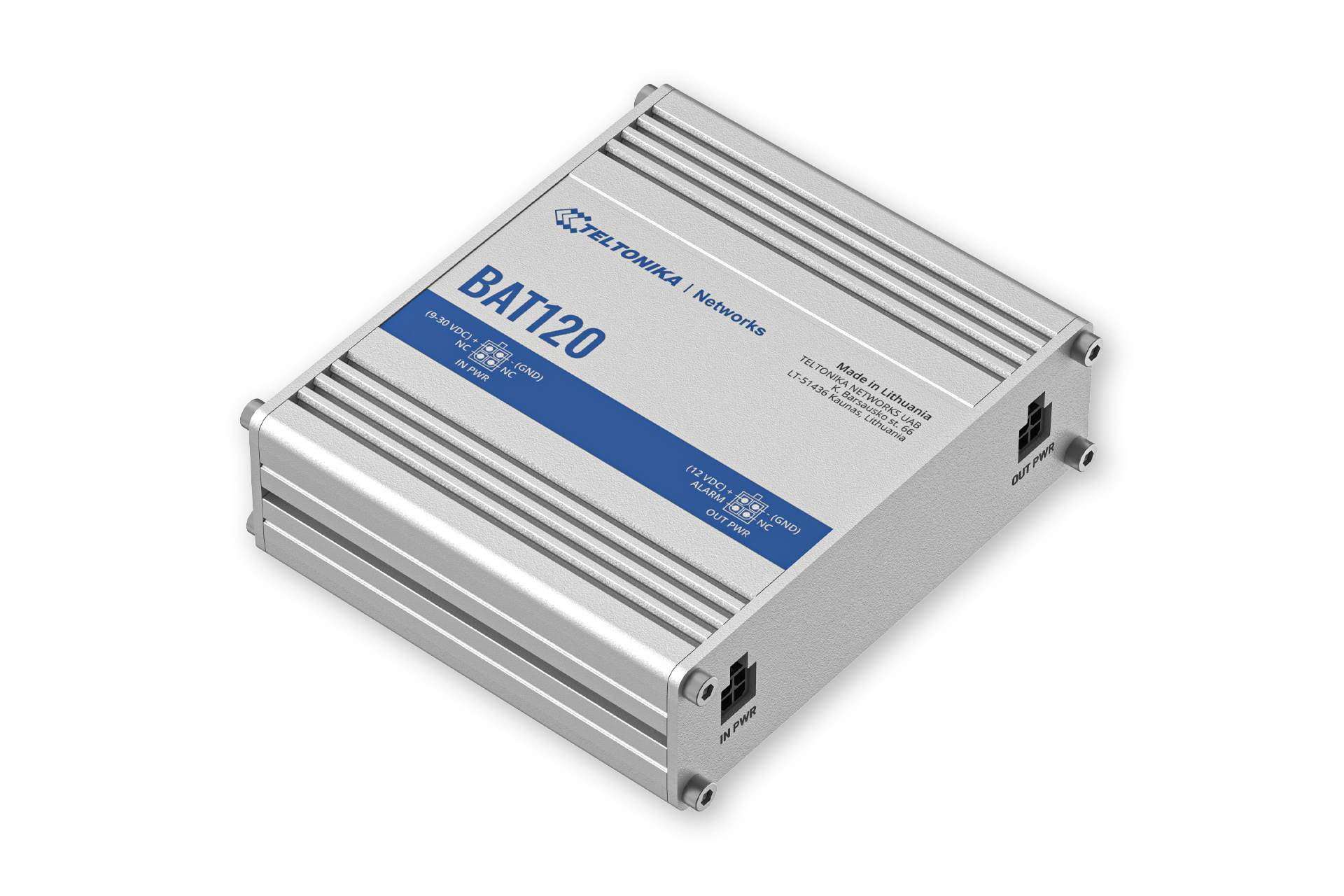

The BAT120 allows users to power a compatible Teltonika Networks device for up to 6 hours. It has reverse polarity and overvoltage protection for the input and 3A overcurrent protection for the output.This rugged and uninterruptible power source is perfect for applications that require constant connectivity from their Teltonika Networks devices, even when power outages or fluctuations occur.HIGHLIGHTS- 4-pin industrial DC outlet- 2300 mAh 17 Wh battery capacity- 3A overcurrent protection- Reverse polarity protection, overvoltage protection- 2 x 18650 Li-Ion cells- compatible with RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100PACKAGE CONTENTS- BAT120- 24W POWER SUPPLY- 4-pin to 4-pin power cord- QSG (Quick Start Guide)- packing box

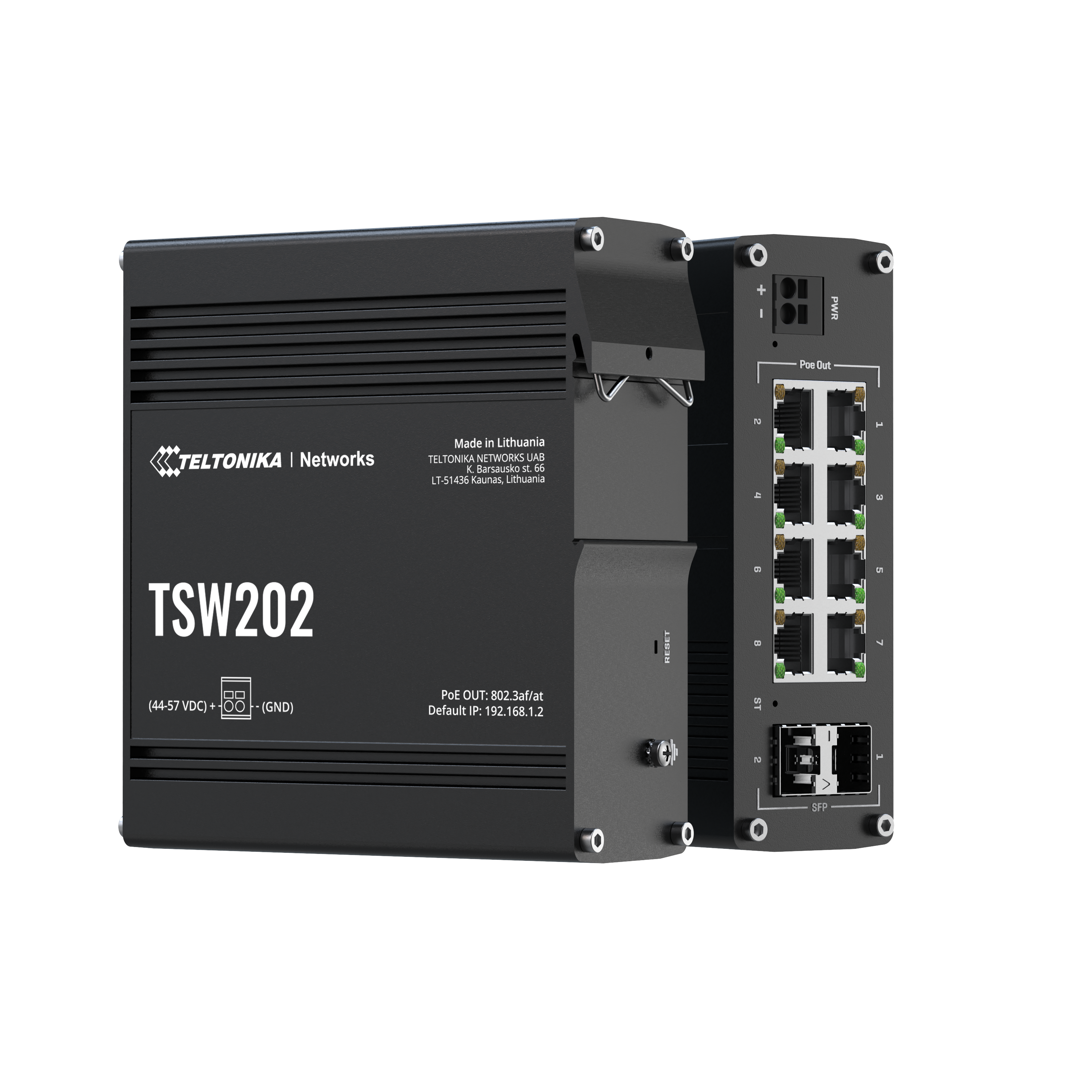

MANAGED PoE+ SWITCH
TSW202 is the first-ever Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M communication by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet, and MRP. The TSW202 has 2 high-performance SFP ports for long-range fibre optic communication and 8 Gigabit Ethernet ports providing 30 W of power each.
ETHERNET ETHMulti-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossoverFibre2 x SFP portsIEEE 802.3 series standards IEEE 802.1p, IEEE 802.1Q, 802.3azPOE OUT PoE portsPort 1 - 8PoE standards802.3af and 802.3at Alternative BPoE Max Power per Port (at PSE)30 WTotal PoE Power Budget (at PSE) 240 WMaximum Ethernet cable length100 m SERVICES EtherNet/IPYesProfinet (class B)YesSNMP V2, V3YesLLDPYes SYSTEM CHARACTERISTICS RAM128MB, DDR3FLASH storage 16 MB serial flashNETWORK MRPMRP client role, MRP manager roleL2 featuresLoop protection, Forwarding table, VLAN, STP/RSTPDHCPDHCP server, DHCP clientPort Settings Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port MirroringL3 Features Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 addressPOWER Connector2-pin industrial DC power socketInput voltage range7 – 57 VDCPoE (passive)44 – 57 VDCPower consumption Idle: < 3 W / Max: 8 W / PoE Max: 248 WPHYSICAL INTERFACES Ethernet8 x RJ45 ports, 10/100/1000 MbpsFibre2 x SFP portsStatus LEDs1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDsPower1 x 2-pin industrial DC power socketResetSoftware reset buttonOther1 x Grounding screw PHYSICAL SPECIFICATION Casing materialAnodized aluminum housing and panelsDimensions (W x H x D)132 x 44.2 x 122.2 mmWeight610 gMounting options Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placementPACKAGE CONTAINS* TSW202QSG (Quick Start Guide)Packaging box *Standard package contents may differ based on standard order codes.
