Datasheet

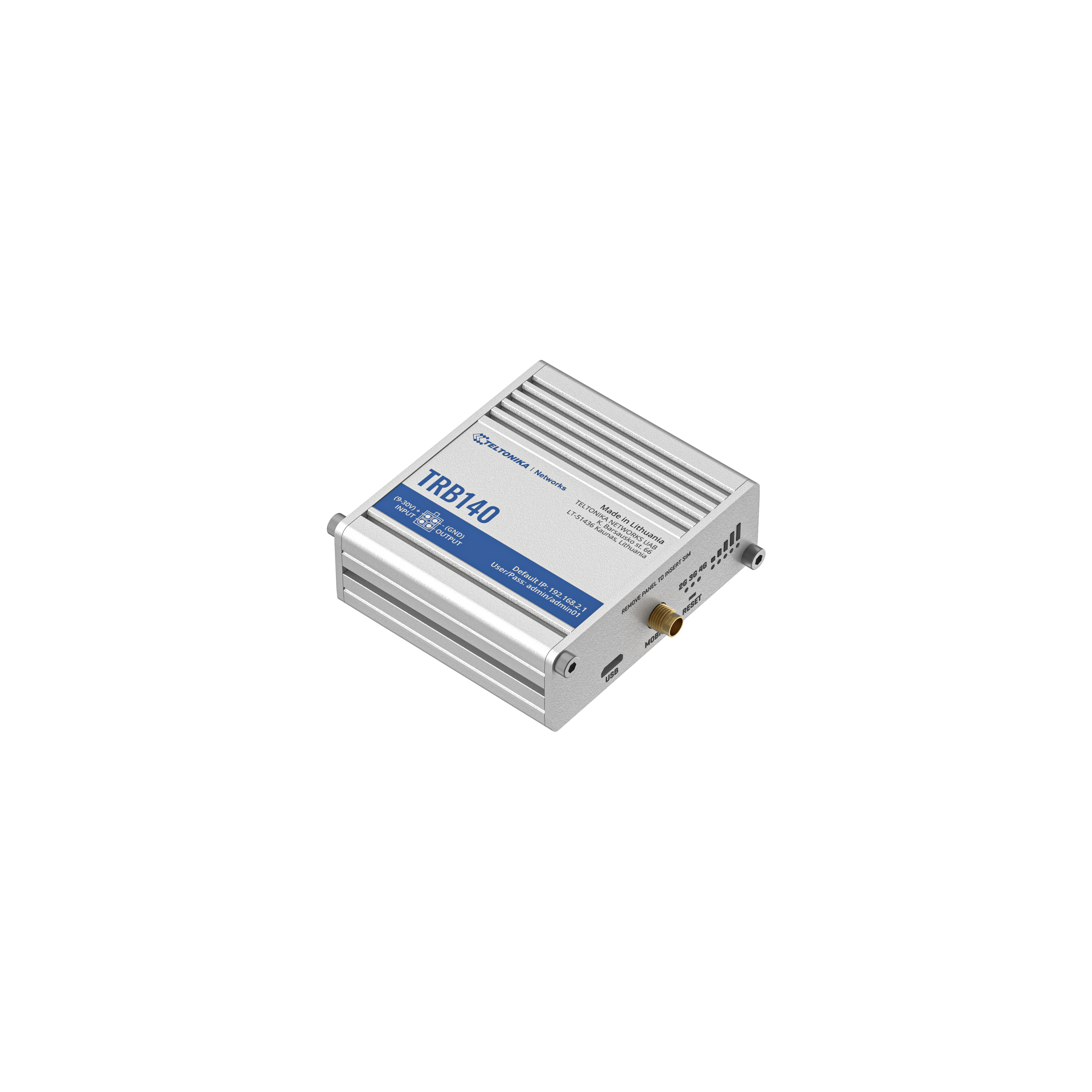

Datasheet   TRB140 is an ultra-small, lightweight, and energy-efficient IoT device with mission-critical LTE Cat 4 and Gigabit Ethernet connectivity options. Linux environment offers a high degree of customization. This gateway is perfect for projects and applications where a single device must be upgraded with reliable and secure internet connectivity.         MOBILE     Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps Status 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps SMS   SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP USSD Supports sending and reading Unstructured Supplementary Service Data messages Black/White list Operator black/white list (by country or separate operators) Multiple PDN Possibility to use different PDNs for multiple network access and services Band management Band lock, Used band status display APN Auto APN Bridge Direct connection (bridge) between mobile ISP and device on LAN Passthrough   Gateway assigns its mobile WAN IP address to another device on LAN NETWORK     Routing Static routing Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall Port forward, traffic rules, custom rules Firewall status page View all your Firewall statistics, rules, and rule counters Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on Network topology Visual representation of your network, showing which devices are connected to which other devices Hotspot Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes DHCP Static and dynamic IP allocation, DHCP Relay QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e DDNS Supported >25 service providers, others can be configured manually Network backup Mobile, VRRP, Wired options, each of which can be used as an automatic Failover SSHFS Possibility to mount remote file system via SSH protocol   ETHERNET     Ethernet   1 x ETH ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover MODBUS     Supported modes Server, Client Supported connection types TCP Custom registers   MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII   MQTT GATEWAY     MQTT Gateway   Allows sending commands and receiving data from MODBUS Server through MQTT broker DNP3     Supported modes   TCP Master, DNP3 Outstation SYSTEM CHARACTERISTICS   CPU ARM Cortex-A7 1.2 GHz RAM 128 MB, DDR2 FLASH storage   512 MB, SPI Flash INPUT / OUTPUT     Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA Events Email, RMS, SMS I/O juggler   Allows to set certain I/O conditions to initiate event POWER     Connector 4-pin industrial DC power socket Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC Power consumption   < 5 W PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS; SIM)   Ethernet 1 x RJ45 port, 10/100/1000 Mbps I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector Status LEDs 3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V Power 1 x 4-pin power connector Antennas 1 x SMA for LTE USB   1 x Virtual network interface via micro USB Reset Reboot/User default reset/Factory reset button   PHYSICAL SPECIFICATION   Casing material Aluminium housing Dimensions (W x H x D) 74.5 x 25 x 64.4 mm Weight 134 g Mounting options   Bottom and sideways DIN rail, Flat surface PACKAGE CONTAINS     TRB140 9 W EU PSU PR3PUEU3 1x Mobile antenna (magnetic mount, SMA male, 3 m cable) Micro-USB cable (0.8 m) 1x hex key LAN cable QSG (Quick Start Guide) Packaging box

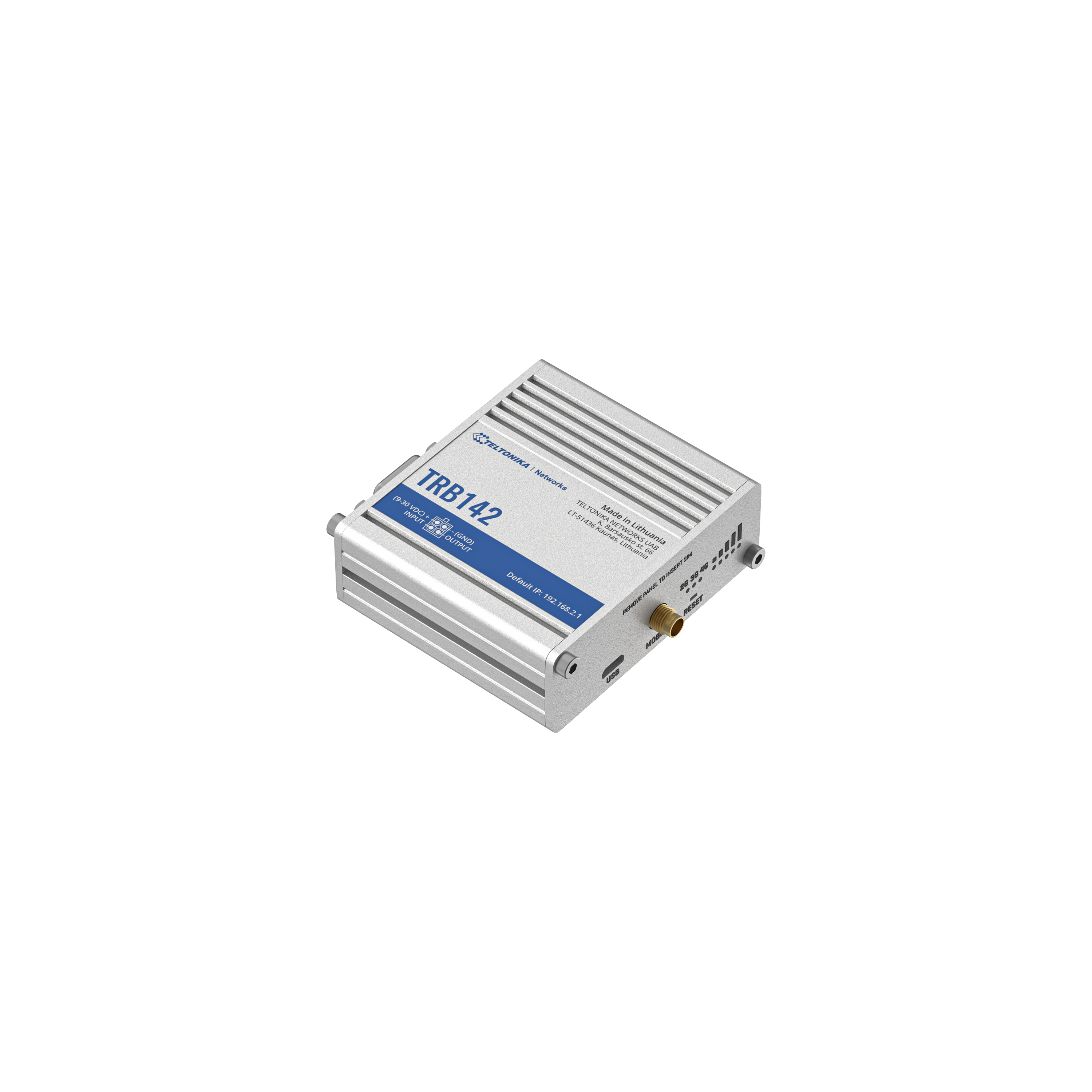

Datasheet   TRB142 is an ultra-small, lightweight, and energy-efficient IoT gateway equipped with mission-critical LTE connectivity. TRB142 comes with a widely used RS232 interface for remote management of industrial devices.        MOBILE  Mobile module4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbpsStatusIMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNCSMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPPUSSDSupports sending and reading Unstructured Supplementary Service Data messagesBlack/White listOperator black/white list (by country or separate operators)Multiple PDNPossibility to use different PDNs for multiple network access and servicesBand managementBand lock, Used band status displayAPNAuto APNBridgeDirect connection (bridge) between mobile ISP and device on LANPassthrough Gateway assigns its mobile WAN IP address to another device on LANNETWORK  RoutingStatic routingNetwork protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTTVoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packetsConnection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspectionFirewallPort forward, traffic rules, custom rulesFirewall status pageView all your Firewall statistics, rules, and rule countersPorts managementView device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so onNetwork topologyVisual representation of your network, showing which devices are connected to which other devicesDHCPStatic and dynamic IP allocation, DHCP RelayQoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11eDDNSSupported >25 service providers, others can be configured manuallyNetwork backupMobile, VRRP, Wired options, each of which can be used as an automatic FailoverSSHFSPossibility to mount remote file system via SSH protocol MODBUS  Supported modesServer, ClientSupported connection typesTCP, RTU(RS232)Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionalitySupported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII DATA TO SERVER Protocol HTTP(S), MQTT, Azure MQTT, KinesisData to serverExtract parameters from multiple sources and different protocols, and send them all to a single server MQTT GATEWAY  MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT brokerDNP3  Supported modes TCP Master, DNP3 Outstation, RTU MasterSYSTEM CHARACTERISTICS CPUARM Cortex-A7 1.2 GHzRAM128 MB, DDR2FLASH storage 512 MB, SPI FlashINPUT / OUTPUT  Input2 x Configurable Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collectorConfigurable I/O output, max output 30 V, 300 mA. Configurable Inputs/Outputs are not available in TRB142*2****OutputHTTP POST/GET, ScheduleEventsEmail, RMS, SMSI/O juggler Allows to set certain I/O conditions to initiate eventPOWER  Connector4-pin industrial DC power socketInput voltage range9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us maxPower consumption < 5 WPHYSICAL INTERFACES  I/O’s2 x Configurable I/O pins on 4 pin power connector (I/O not available in TRB142*2****)Status LEDs3 x connection type status LEDs, 5 x connection strength LEDs, 1 x Power LEDSIM1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 VPower1 x 4-pin power connectorAntennas1 x SMA for LTEUSB1 x Virtual network interface via micro USBRS2321 x DB9 socketReset Reboot/User default reset/Factory reset buttonPHYSICAL SPECIFICATION Casing materialAluminium housingDimensions (W x H x D)74.5 x 25 x 64.4 mmWeight135 gMounting options Bottom and sideways DIN rail, Flat surfaceOPERATING ENVIRONMENT Operating temperature-40 °C to 75 °COperating humidity10% to 90% non-condensingIngress Protection RatingIP30 PACKAGE CONTAINS  TRB1429 W EU PSU PR3PUEU31x Mobile antenna (magnetic mount, SMA male, 3 m cable)Micro-USB cable (0.8 m)1x hex keyQSG (Quick Start Guide)Packaging box

TRB141 is a small industrial LTE Cat 1 gateway equipped with diverse inputs/outputs and a Micro USB port. This gateway comes with secure, highly customizable RutOS and works perfectly for remote management of devices and applications using I/O.   Datasheet     MOBILE  Mobile module4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbpsStatusSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCIDSMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPPUSSDSupports sending and reading Unstructured Supplementary Service Data messagesBlack/White listOperator black/white listMultiple PDNPossibility to use different PDNs for multiple network access and servicesBand managementBand lock, Used band status displayAPNAuto APNBridgeDirect connection (bridge) between mobile ISP and device on LANPassthrough Router assigns its mobile WAN IP address to another device on LANNETWORK  RoutingStatic routingNetwork protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTTVoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packetsConnection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspectionFirewallPort forward, traffic rules, custom rulesDHCPStatic and dynamic IP allocation, DHCP RelayNetwork backupMobile, VRRP, Wired options, each of which can be used as an automatic FailoverSSHFSPossibility to mount remote file system via SSH protocol MODBUS TCP SLAVE  ID rangeRespond to one ID in range [1;255] or anyAllow Remote AccessAllow access through WANCustom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionalityMODBUS TCP MASTER  Supported functions01, 02, 03, 04, 05, 06, 15, 16Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)DATA TO SERVER Protocol HTTP(S), MQTT, Azure MQTTMQTT GATEWAY  MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT brokerDNP3  Supported modes TCP Master, DNP3 OutstationSYSTEM CHARACTERISTICS CPUARM Cortex-A7 1.2 GHzRAM128 MB, DDR2FLASH storage 512 MB, SPI FlashINPUT / OUTPUT  Input2 x Digital inputs (configurable passive or active), 1 x Isolated input, 1 x Analog input ( with 4-20 mA capability). 1 x Configurable Inputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic highOutput2 x Relay outputs (latching and non latching). 1 x Configurable Output, Open collector output, max output 30 V, 300 mAEventsEmail, RMS, SMSI/O juggler Allows to set certain I/O conditions to initiate eventPOWER  Connector4-pin industrial DC power socketInput voltage range9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us maxPower consumption < 5 WPHYSICAL INTERFACES  I/O’s3 x Digital Inputs, 1 x Analog input, 2 x Relays on 16 pin connector, 2 x I/O pins on 4 pin power connectorStatus LEDs3 x connection type status LEDs, 5 x connection strength LEDs, 1 x Power LEDSIM1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 VPower1 x 4-pin power connector1-Wire1 x 1-Wire interface on 16 pin connectorAntennas1 x SMA for LTEUSB1 x Virtual network interface via micro USBReset Reboot/User default reset/Factory reset buttonPHYSICAL SPECIFICATION Casing materialAluminium housingDimensions (W x H x D)74.5 x 25 x 64.4 mmWeight136 gMounting options Bottom and sideways DIN rail, Flat surfaceOPERATING ENVIRONMENT Operating temperature-40 °C to 75 °COperating humidity10% to 90% non-condensingIngress Protection RatingIP30 PACKAGE CONTAINS  TRB141 Gate9 W EU PSU1x LTE antenna (magnetic mount, SMA male, 3 m cable)Micro-USB cable (0.8 m)1x hex keyI/O connectorQSG (Quick Start Guide)Packaging box

DATASHEET

Datasheet

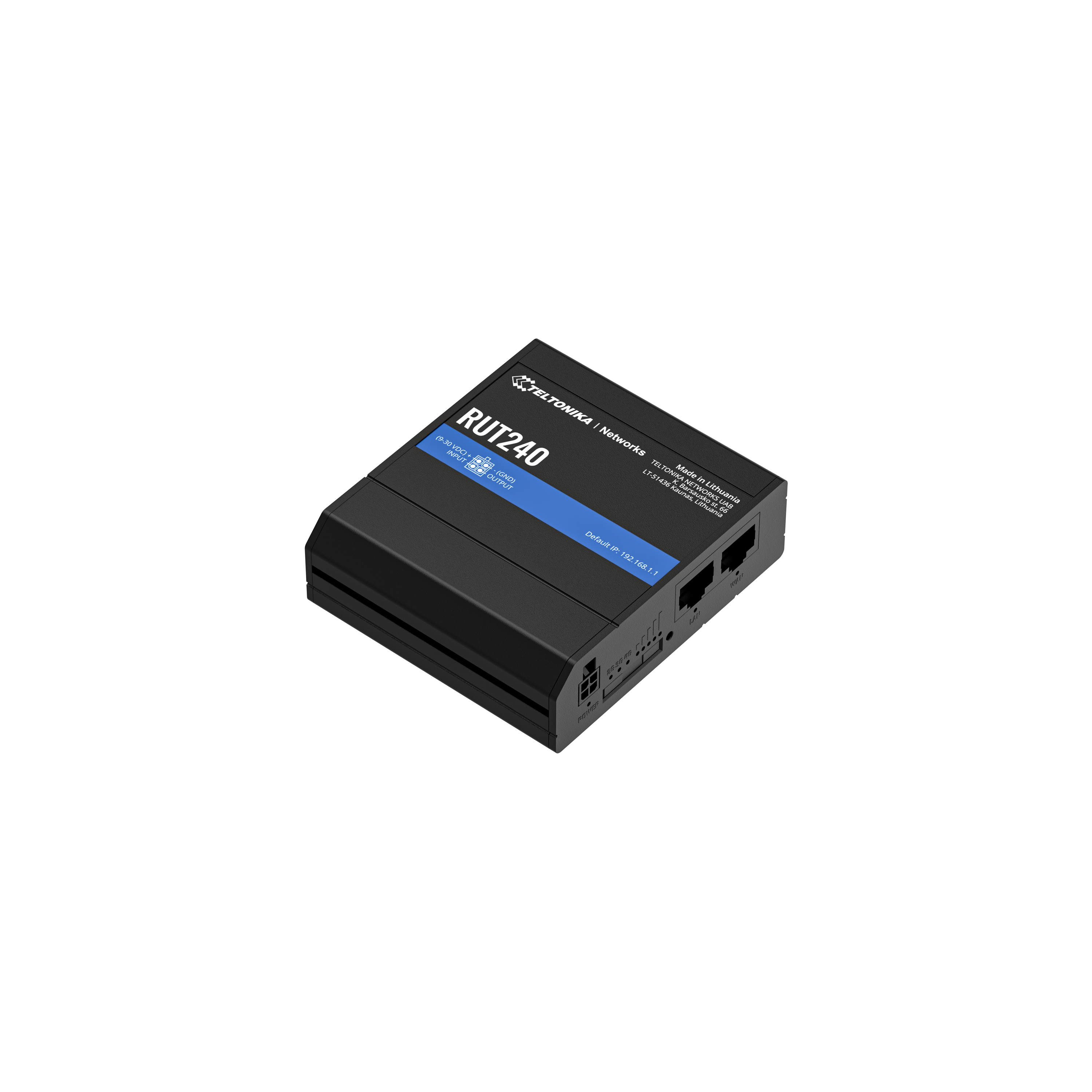

  industrial cellular RouterCompact, robust and powerful device tailored for industrial M2M/IoT applications. RUT240 features two Ethernet ports and a wireless interface with Hotspot functionality. Stable connectivity is ensured with WAN failover, while the RutOS software meets the highest security standards. Compatible with RMS.      Datasheet EN    End of ordering: 2023 July 31End of production: 2023 December 31End of support: 2028 July 31     MOBILE  Mobile module4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – UP to 236.8 kbpsStatusSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCIDSMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPPUSSDSupports sending and reading Unstructured Supplementary Service Data messagesBlack/White listOperator black/white listMultiple PDNPossibility to use different PDNs for multiple network access and servicesBand managementBand lock, Used band status displayAPNAuto APNBridgeDirect connection (bridge) between mobile ISP and device on LANPassthrough Router assigns its mobile WAN IP address to another device on LANWIRELESS  Wireless modeIEEE 802.11b/g/n/, Access Point (AP), Station (STA)WiFi securityWPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separationSSID/ESSIDSSID stealth mode and access control based on MAC addressWiFi usersUp to 50 simultaneous connectionsWireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing pageETHERNET  WAN1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIXLAN 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIXMODBUS TCP SLAVE  ID rangeRespond to one ID in range [1;255] or anyAllow Remote AccessAllow access through WANCustom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionalityMODBUS TCP MASTER Supported functions01, 02, 03, 04, 05, 06, 15, 16Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)MODBUS DATA TO SERVER Protocol HTTP(S), MQTT, Azure MQTTMQTT GATEWAY  MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT brokerDNP3  Supported modes TCP Master, DNP3 Outstation SYSTEM CHARACTERISTICS CPUAtheros Hornet, MIPS 24Kc, 400 MHzRAM64 MB, DDR2FLASH storage 16 MB, SPI FlashINPUT / OUTPUT  Input1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic highOutput1 x Digital Output, Open collector output, max output 30 V, 300 mAEventsEmail, RMS, SMSI/O juggler Allows to set certain I/O conditions to initiate eventPOWER  Connector4-pin industrial DC power socketInput voltage range9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us maxPoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 – 50 VDCPower consumption < 6.5 W MaxPHYSICAL INTERFACES (PORTS, LEDS, BUTTONS; SIM) Ethernet2 x RJ45 ports, 10/100 MbpsI/O’s1 x Digital Input, 1 x Digital Output on 4-pin power connectorStatus LEDs3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LEDSIM1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holderPower1 x 4-pin power connectorAntennas2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectorsReset Reboot/User default reset/Factory reset buttonPHYSICAL SPECIFICATION Casing materialAluminium housing, plastic panelsDimensions (W x H x D)83 x 25 x 74 mmWeight125 gMounting options Bottom and sideways DIN rail mounting slotsPACKAGE CONTAINS  Router RUT2409 W EU PSU2x LTE antennas (swivel, SMA male)1 x WiFi antenna (swivel, RP-SMA mal)Ethernet cable (1.5 m)SIM Adapter kitQSG (Quick Start Guide)RMS FlyerPackaging box

  industrial cellular Router Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, RUT241 offers unstoppable connection continuity with automatic WAN failover. Industrial design, compact size, multiple connection interfaces, and compatibility with RMS make this device an excellent fit in numerous IoT and M2M solutions.    Datasheet EN      MOBILE  Mobile module4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – UP to 236.8 kbpsStatusSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCIDSMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPPUSSDSupports sending and reading Unstructured Supplementary Service Data messagesBlack/White listOperator black/white listMultiple PDNPossibility to use different PDNs for multiple network access and servicesBand managementBand lock, Used band status displayAPNAuto APNBridgeDirect connection (bridge) between mobile ISP and device on LANPassthrough Router assigns its mobile WAN IP address to another device on LANWIRELESS  Wireless modeIEEE 802.11b/g/n/, Access Point (AP), Station (STA)WiFi securityWPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separationSSID/ESSIDSSID stealth mode and access control based on MAC addressWiFi usersUp to 50 simultaneous connectionsWireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing pageETHERNET  WAN1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIXLAN 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIXMODBUS TCP SLAVE  ID rangeRespond to one ID in range [1;255] or anyAllow Remote AccessAllow access through WANCustom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionalityMODBUS TCP MASTER  Supported functions01, 02, 03, 04, 05, 06, 15, 16Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)MODBUS DATA TO SERVER Protocol HTTP(S), MQTT, Azure MQTTMQTT GATEWAY  MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT brokerDNP3  Supported modes TCP Master, DNP3 Outstation SYSTEM CHARACTERISTICS CPUMediatek MIPS 24Kc 580 MHzRAM128 MB, DDR2FLASH storage 16 MB, SPI FlashINPUT / OUTPUT  Input1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic highOutput1 x Digital Output, Open collector output, max output 30 V, 300 mAEventsEmail, RMS, SMSI/O juggler Allows to set certain I/O conditions to initiate eventPOWER  Connector4-pin industrial DC power socketInput voltage range9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us maxPoE (passive)Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 – 50 VDCPower consumption < 6.5 W MaxPHYSICAL INTERFACES (PORTS, LEDS, BUTTONS; SIM) Ethernet2 x RJ45 ports, 10/100 MbpsI/O’s1 x Digital Input, 1 x Digital Output on 4-pin power connectorStatus LEDs3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LEDSIM1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holderPower1 x 4-pin power connectorAntennas2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectorsReset Reboot/User default reset/Factory reset buttonPHYSICAL SPECIFICATION Casing materialAluminium housing, plastic panelsDimensions (W x H x D)83 x 25 x 74 mmWeight125 gMounting options Bottom and sideways DIN rail mounting slotsPACKAGE CONTAINS  Router RUT2419 WEU  PSU2x LTE antennas (swivel, SMA male)1 x WiFi antenna (swivel, RP-SMA mal)Ethernet cable (1.5 m)SIM Adapter kitQSG (Quick Start Guide)RMS FlyerPackaging box

Datasheet

Datasheet

Datasheet

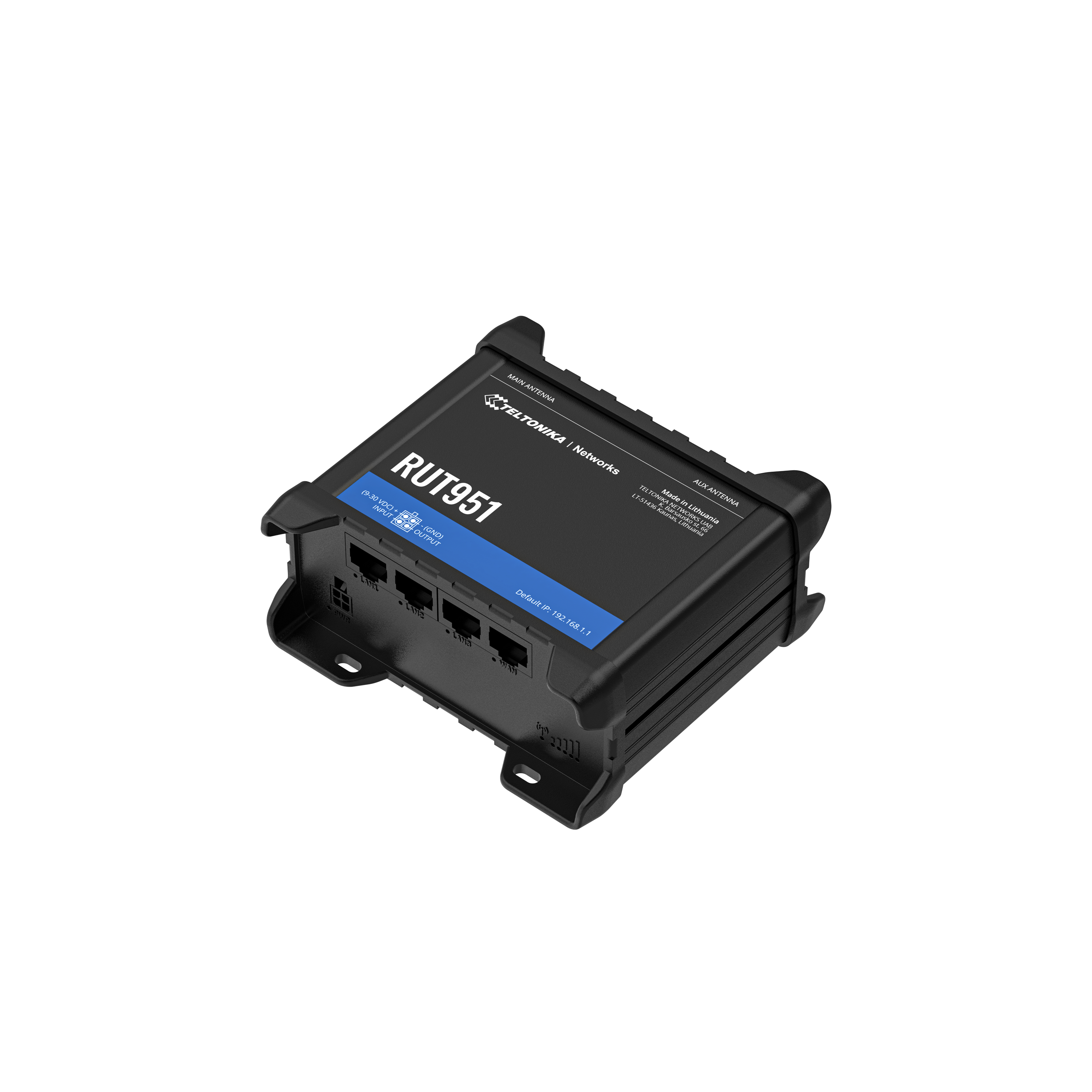

industrial cellular Router RUT951 features dual-SIM cellular connectivity combined with WI-FI and four Ethernet interfaces to meet the needs of the most varied IoT scenarios. Powered by RutOS, this router offers advanced customization options, automation features, and top-level security for your solution.  Datasheet      MOBILE  Mobile module4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – UP to 236.8 kbpsSIM switch2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protectionStatusSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCIDSMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPPUSSDSupports sending and reading Unstructured Supplementary Service Data messagesBlack/White listOperator black/white listMultiple PDNPossibility to use different PDNs for multiple network access and servicesBand managementBand lock, Used band status displayAPNAuto APNBridgeDirect connection (bridge) between mobile ISP and device on LANPassthrough Router assigns its mobile WAN IP address to another device on LANWIRELESS  Wireless modeIEEE 802.11b/g/n/, Access Point (AP), Station (STA)WiFi securityWPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separationSSID/ESSIDSSID stealth mode and access control based on MAC addressWiFi usersUp to 100 simultaneous connectionsWireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing pageETHERNET  WAN1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIXLAN 3 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIXMODBUS TCP SLAVE  ID rangeRespond to one ID in range [1;255] or anyAllow Remote AccessAllow access through WANCustom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionalityMODBUS TCP MASTER  Supported functions01, 02, 03, 04, 05, 06, 15, 16Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)MODBUS DATA TO SERVER Protocol HTTP(S), MQTT, Azure MQTTMQTT GATEWAY  MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT brokerDNP3  Supported modes TCP Master, DNP3 Outstation SYSTEM CHARACTERISTICS CPUMediatek MIPS 24Kc 580 MHzRAM128 MB, DDR2FLASH storage 16 MB, SPI FlashINPUT / OUTPUT  Input1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic highOutput1 x Digital Output, Open collector output, max output 30 V, 300 mAEventsEmail, RMS, SMSI/O juggler Allows to set certain I/O conditions to initiate eventPOWER  Connector4-pin industrial DC power socketInput voltage range9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us maxPoE (passive)Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 – 50 VDCPower consumption < 2 W idle, < 7 W MaxPHYSICAL INTERFACES (PORTS, LEDS, BUTTONS; SIM) Ethernet4 x RJ45 ports, 10/100 MbpsI/O’s1 x Digital Input, 1 x Digital Output on 4-pin power connectorStatus LEDs1 x bi- color connection status LED, 5 x Connection strength LEDs, 4 x LAN status LEDs, 1 x Power LEDSIM2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)Antennas2 x SMA for LTE, 2 x RP-SMA for WiFi antenna connectorsReset Reboot/User default reset/Factory reset buttonPHYSICAL SPECIFICATION Casing materialAluminium housing, plastic panelsDimensions (W x H x D)110 x 50 x 100 mmWeight287 gMounting options DIN rail (can be mounted on two sides), flat surface placementPACKAGE CONTAINS  Router RUT9519 W EU PSU2x LTE antennas (swivel, SMA male)2 x WiFi antenna (swivel, RP-SMA mal)Ethernet cable (1.5 m)SIM Adapter kitQSG (Quick Start Guide)Packaging box

Datasheet

Datasheet

Datasheet

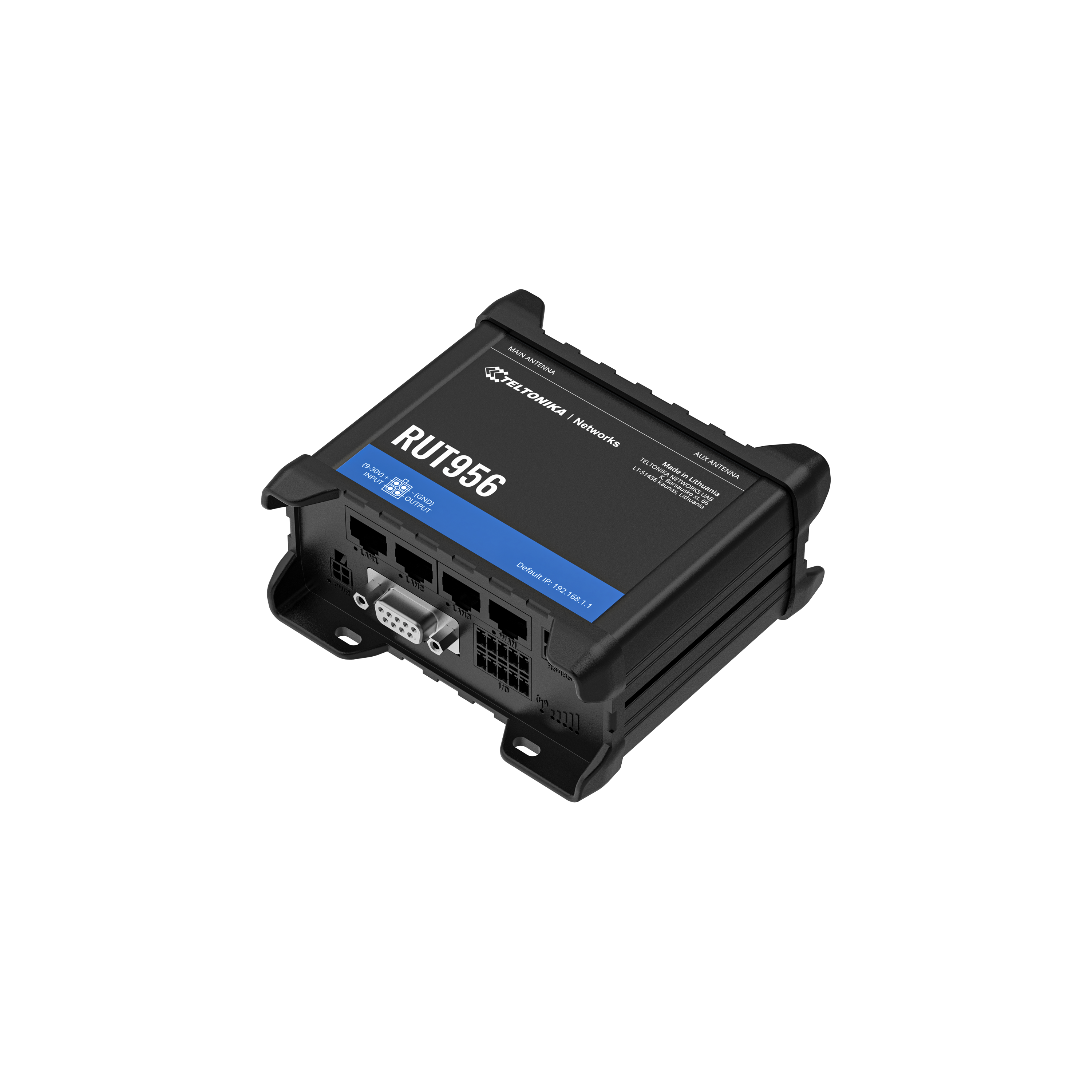

Datasheet     RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.     MOBILE  Mobile module4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbpsSIM switch2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protectionStatusIMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNCSMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPPUSSDSupports sending and reading Unstructured Supplementary Service Data messagesBlack/White listOperator black/white list (by country or separate operators)Multiple PDNPossibility to use different PDNs for multiple network access and servicesBand managementBand lock, Used band status displayAPNAuto APNBridgeDirect connection (bridge) between mobile ISP and device on LANPassthrough Router assigns its mobile WAN IP address to another device on LAN NETWORK HotspotCaptive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themesRoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routingNetwork protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packetsConnection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspectionFirewallPort forward, traffic rules, custom rulesDHCPStatic and dynamic IP allocation, DHCP RelayQoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11eDDNSSupported >25 service providers, others can be configured manuallyNetwork backupWi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic FailoverLoad balancingBalance Internet traffic over multiple WAN connectionsSSHFSPossibility to mount remote file system via SSH protocol WIRELESS  Wireless modeIEEE 802.11b/g/n, Access Point (AP), Station (STA)WiFi securityWPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separationSSID/ESSIDSSID stealth mode and access control based on MAC addressWi-Fi usersUp to 100 simultaneous connectionsWireless Connectivity FeaturesFast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)Wireless MAC filterWhitelist, blacklist ETHERNET  WAN1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIXLAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX MODBUS   Supported modesServer, ClientSupported connection typesRTU (RS232, RS485), TCP, USBCustom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionalitySupported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII MQTT GATEWAY  MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT brokerDNP3  Supported modes TCP Master, DNP3 Outstation, RTU MasterSYSTEM CHARACTERISTICS CPUMediatek, 580 MHz, MIPS 24KEcRAM128 MB, DDR2FLASH storage 16 MB, SPI FlashINPUT / OUTPUT  Input1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)Output1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)EventsEmail, RMS, SMSI/O juggler Allows to set certain I/O conditions to initiate event POWER  Connector4-pin industrial DC power socketInput voltage range9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us maxPoE (passive)Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDCPower consumption < 2 W idle, < 7 W MaxPHYSICAL INTERFACES (PORTS, LEDS, BUTTONS; SIM) Ethernet4 x RJ45 ports, 10/100 MbpsI/O’s2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)Status LEDs1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x PowerSIM2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)Power1 x 4-pin power connectorInput/output1 x 10-pin industrial socket for inputs/outputsAntennas2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSSUSB1 x USB A port for external devicesRS2321 x DB9 socketRS4851 x 6-pin industrial socketReset Reboot/User default reset/Factory reset buttonPHYSICAL SPECIFICATION Casing materialAluminium housing, plastic panelsDimensions (W x H x D)110 x 50 x 100 mmWeight287 gMounting options DIN rail (can be mounted on two sides), flat surface placementPACKAGE CONTAINS  RUT956 router9 W EU PSU PR3PUEU32x Mobile antennas (magnetic mount, SMA male, 3 m cable)2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)GNSS antenna (adhesive , SMA male, 3 m cable)RS485 connector blockI/O connector blockEthernet cable (1.5 m)SIM Adapter kitQSG (Quick Start Guide)Packaging box

Datasheet     RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.     MOBILE  Mobile module4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbpsSIM switch2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protectionStatusIMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNCSMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPPUSSDSupports sending and reading Unstructured Supplementary Service Data messagesBlack/White listOperator black/white list (by country or separate operators)Multiple PDNPossibility to use different PDNs for multiple network access and servicesBand managementBand lock, Used band status displayAPNAuto APNBridgeDirect connection (bridge) between mobile ISP and device on LANPassthrough Router assigns its mobile WAN IP address to another device on LAN NETWORK   HotspotCaptive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themesRoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routingNetwork protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packetsConnection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspectionFirewallPort forward, traffic rules, custom rulesDHCPStatic and dynamic IP allocation, DHCP RelayQoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11eDDNSSupported >25 service providers, others can be configured manuallyNetwork backupWi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic FailoverLoad balancingBalance Internet traffic over multiple WAN connectionsSSHFSPossibility to mount remote file system via SSH protocol WIRELESS  Wireless modeIEEE 802.11b/g/n, Access Point (AP), Station (STA)WiFi securityWPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separationSSID/ESSIDSSID stealth mode and access control based on MAC addressWi-Fi usersUp to 100 simultaneous connectionsWireless Connectivity FeaturesFast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)Wireless MAC filterWhitelist, blacklist ETHERNET  WAN1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIXLAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX MODBUS   Supported modesServer, ClientSupported connection typesRTU (RS232, RS485), TCP, USBCustom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionalitySupported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII MQTT GATEWAY  MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT brokerDNP3  Supported modes TCP Master, DNP3 Outstation, RTU MasterSYSTEM CHARACTERISTICS CPUMediatek, 580 MHz, MIPS 24KEcRAM128 MB, DDR2FLASH storage 16 MB, SPI FlashINPUT / OUTPUT  Input1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)Output1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)EventsEmail, RMS, SMSI/O juggler Allows to set certain I/O conditions to initiate event POWER  Connector4-pin industrial DC power socketInput voltage range9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us maxPoE (passive)Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDCPower consumption < 2 W idle, < 7 W MaxPHYSICAL INTERFACES (PORTS, LEDS, BUTTONS; SIM) Ethernet4 x RJ45 ports, 10/100 MbpsI/O’s2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)Status LEDs1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x PowerSIM2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)Power1 x 4-pin power connectorInput/output1 x 10-pin industrial socket for inputs/outputsAntennas2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSSUSB1 x USB A port for external devicesRS2321 x DB9 socketRS4851 x 6-pin industrial socketReset Reboot/User default reset/Factory reset buttonPHYSICAL SPECIFICATION Casing materialAluminium housing, plastic panelsDimensions (W x H x D)110 x 50 x 100 mmWeight287 gMounting options DIN rail (can be mounted on two sides), flat surface placementPACKAGE CONTAINS  RUT956 router9 W EU PSU PR3PUEU32x Mobile antennas (magnetic mount, SMA male, 3 m cable)2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)GNSS antenna (adhesive , SMA male, 3 m cable)RS485 connector blockI/O connector blockEthernet cable (1.5 m)SIM Adapter kitQSG (Quick Start Guide)Packaging box

STANDARD PACKAGE CONTAINSRouter RUTX0918 W EU PSU2 x LTE antennas (swivel, SMA male)1 x GNSS antenna (adhesive, SMA male, 3 m cable)SIM Adapter kitEthernet cable (1.5 m)QSG (Quick Start Guide)RMS FlyerPackaging box   Datasheet

Standard Paket enthält:Router RUTX1118 W EU PSU2 x LTE antennas (swivel, SMA male)2 x WiFi antennas (swivel, RP-SMA male)1 x GNSS antenna (adhesive, SMA male, 3 m cable)1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)Ethernet cable (1.5 m)SIM Adapter kitQSG (Quick Start Guide)RMS FlyerPackaging box   Datasheet

Datasheet

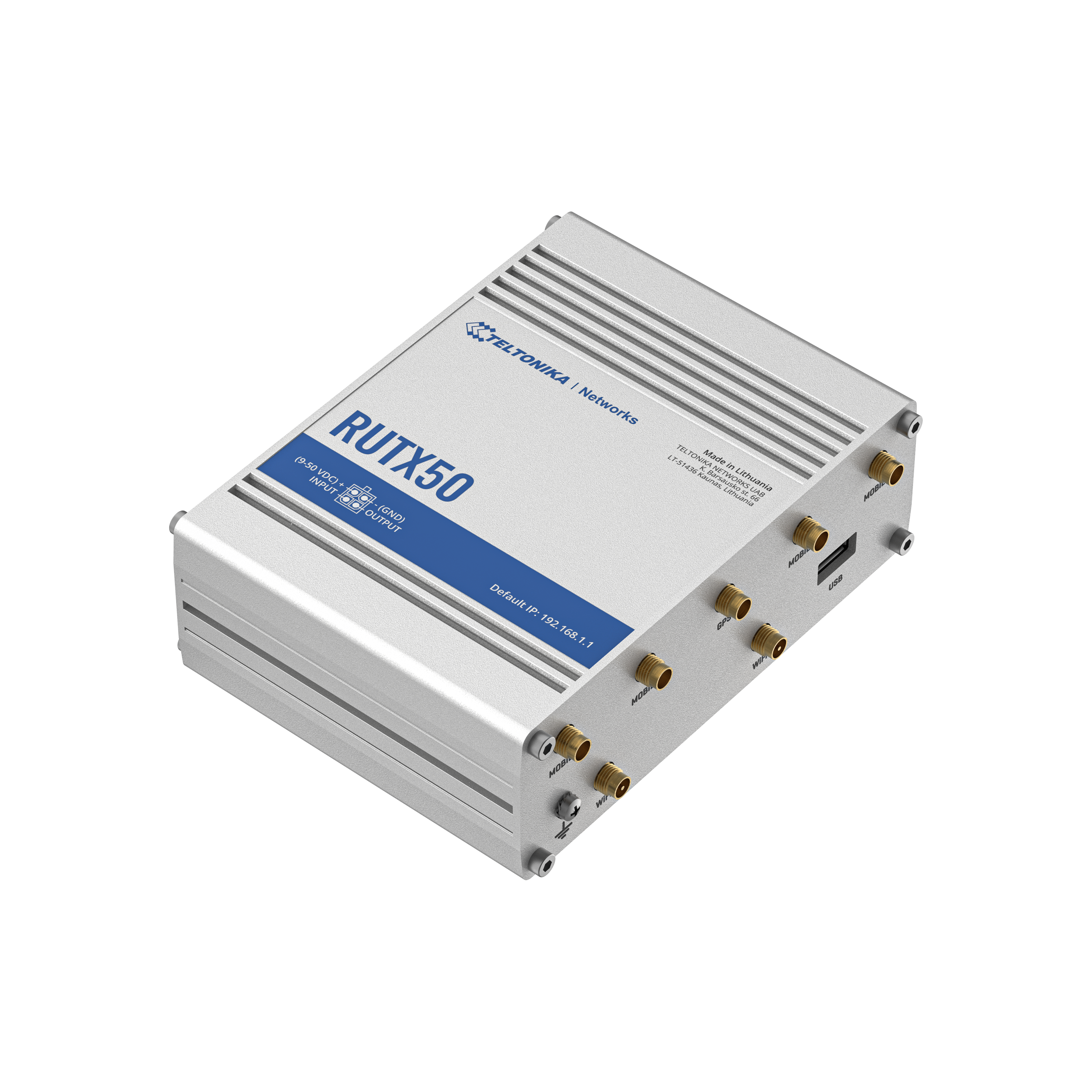

industrial 5G Router RUTX50 is a dual-SIM multi-network router offering 5G mobile communication for high-speed and data-heavy applications. Together with 5x Gigabit Ethernet ports and dual-band Wi-Fi, it provides data connection redundancy with auto-failover. Backward compatibility and multiple interfaces allow for long-term expandability and upgrading options.     Datasheet   MOBILE  Mobile module5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps ULSIM switch2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protectionStatusSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, Carrier aggregationSMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPPUSSDSupports sending and reading Unstructured Supplementary Service Data messagesBlack/White listOperator black/white listMultiple PDNPossibility to use different PDNs for multiple network access and servicesBand managementBand lock, Used band status displaySIM idle protection serviceWhen working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until thenAPNAuto APNBridgeDirect connection (bridge) between mobile ISP and device on LANPassthrough Router assigns its mobile WAN IP address to another device on LANWIRELESS  Wireless mode802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)WiFi securityWPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separationSSID/ESSIDESSID stealth modeWiFi usersup to 150 simultaneous connectionsWireless Connectivity FeaturesWireless mesh (802.11s), fast roaming (802.11r), RelaydWireless MAC filterWhitelist, blacklistWireless QR code generatorOnce scanned, a user will automatically enter your network without needing to input login information.  NETWORK  HotspotCaptive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themesRoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routingNetwork protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packetsConnection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspectionFirewallPort forward, traffic rules, custom rulesFirewall status pageView all your Firewall statistics, rules, and rule countersPorts managementView device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so onNetwork topologyVisual representation of your network, showing which devices are connected to which other devicesHotspotCaptive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themesDHCPStatic and dynamic IP allocation, DHCP RelayQoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11eDDNSSupported >25 service providers, others can be configured manuallyNetwork backupWi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic FailoverLoad balancingBalance Internet traffic over multiple WAN connectionsSSHFSPossibility to mount remote file system via SSH protocol ETHERNET  WAN1 x WAN port  10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossoverLAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover MODBUS TCP SLAVE  ID rangeRespond to one ID in range [1;255] or anyAllow Remote AccessAllow access through WANCustom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality MODBUS TCP MASTER  Supported functions01, 02, 03, 04, 05, 06, 15, 16Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) DATA TO SERVER Protocol HTTP(S), MQTT, Azure MQTT, KinesisData to serverExtract parameters from multiple sources and different protocols, and send them all to a single server MQTT GATEWAY  MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT brokerDNP3  Supported modes TCP Master, DNP3 OutstationSYSTEM CHARACTERISTICS CPUQuad-core ARM Cortex A7, 717 MHzRAM256 MB (100 MB available for userspace)FLASH storage 256 MB (80 MB available for userspace)INPUT / OUTPUT  Input1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic highOutput1 x Digital Output, Open collector output, max output 30 V, 300 mAEventsEmail, RMS, SMSI/O juggler Allows to set certain I/O conditions to initiate eventPOWER  Connector4-pin industrial DC power socketInput voltage range9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us maxPoE (passive)Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC PHYSICAL INTERFACES Ethernet5 x RJ45 ports, 10/100/1000 MbpsI/O’s1 x Digital Input, 1 x Digital Output on 4-pin power connectorStatus LEDs3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDsSIM2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 VPower1 x 4-pin power connectorAntennas4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNSUSB1 x USB A port for external devicesReset Reboot/User default reset/Factory reset buttonOther1 x Grounding screw PHYSICAL SPECIFICATION Casing materialAluminum housingDimensions (W x H x D)132 x 44.2 x 95.1 mmWeight533 gMounting options DIN rail (can be mounted on two sides), flat surface placementOPERATING ENVIRONMENT Operating temperature-40 °C to 75 °COperating humidity10% to 90% non-condensingIngress Protection RatingIP30 PACKAGE CONTAINS  RUTX50 Router18 W EU PSU4x Mobile antennas (swivel, SMA male)2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)1x GNSS antenna (adhesive, SMA male, 3 m cable)Ethernet cable (1.5 m)SIM Adapter kitQSG (Quick Start Guide)Packaging box

Datasheet
